Wysiwyg Plugin

Support for the integration of WYSIWYG (What-You-See-Is-What-You-Get) editors. Comes bundled with a complete integration of the feature-rich Kupu editor.

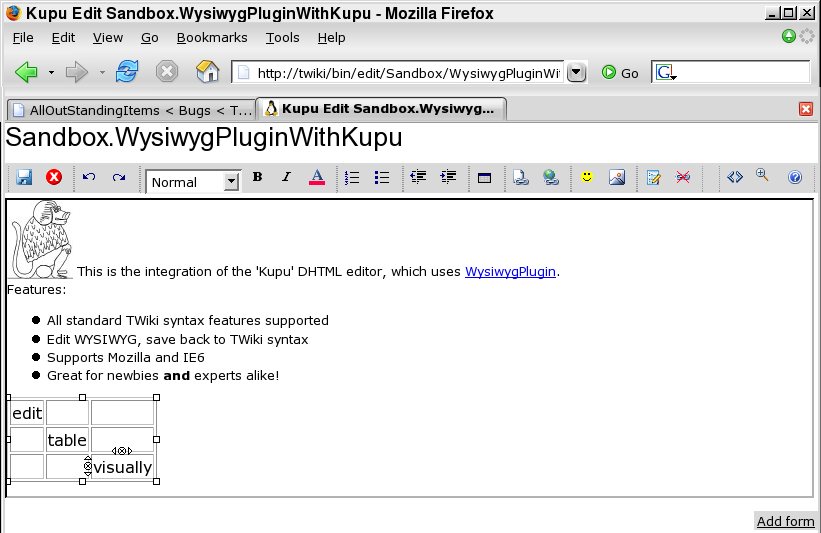

Screenshot

The plugin is a generic framework that supports editing of TWiki topics using any browser-based HTML editor. It works by transforming TML (TWiki Meta Language) into HTML for the editor and then transforming HTML back into TML on save. These steps can be separated to support the import of HTML from external sources such as existing web pages.

The plugin should operate with TWiki20040904 as well as TWiki-4.0.0 and later.

Caveat: WysiwygPlugin is designed for editing TWiki topics, not as a general purpose HTML editor. It will work fine on topics that contain text, TML formatting, and most HTML. However, because of the complexity of transforming TML into HTML and back, complex TML, and mixing HTML and TML may not give the results you expect. You are recommended to use the standard browser textarea editor for editing existing topics that contain mixed HTML and TML, or complex %TML%-type variables.

Features

  • Supports the input of malformed HTML
  • Full round-trip (TML -> XHTML -> TWiki syntax)
  • Framework is editor agnostic
  • Customised Kupu editor included

Details

What's in the package

The package includes the following pieces:
  • TML (TWiki syntax) to HTML translator
  • HTML to TML translator (with stand-alone script)
  • Generic TWiki plugin for automating the translation during editing
  • Kupu editor integration, implemented as a TWiki skin

How to use the editor

Basic help for most of the functions in the toolbar is available by "hovering" the mouse over the button. Some functions require a bit more explanation:
  • "Insert No-Op" inserts a <nop> region. Any TWiki syntax such as wikiwords or variables inside the region will be disabled in the rgeion. $lt;nop> regions may not extend over line breaks.
  • The rightmost drop-down will give you a menu of TWiki variables that can be inserted. Any of these variables can be edited after they have been placed in the text, for example to add parameters.
  • "Insert a WikiWord" will give you a menu of topics in the current web that can be inserted. Topics are inserted as links, though typing wikiwords in plain text will work just as well.
  • Watch out for the <> button on the right of the toolbar. It lets you switch into an HTML view, which can be very useful when you can't get your formatting right.
  • In TWiki, a totally empty table cell causes the cell to be merged with the cell immediately to the left. To make this effect more transparent in the editor, these empty cells are shown with the text "%SPAN%" in them. In Kupu, if you add %SPAN% to a table cell, then all the rest of the content will be thrown away and the cell will be converted to an empty table cell. Note that this only applies to tables that are converted to TWiki syntax.

Kupu Notes

The version of Kupu shipped with this plugin is an uncustomised basic Kupu release. All the TWiki customisation is done as plugins and extensions to Kupu - the basic kupu code is shipped completely intact.

How it works

The plugin works by translating the topic text into HTML, which is then fed to the editor. The edited HTML is then run through the reverse translation before saving to the topic. TWiki syntax is used in preference to HTML in the stored topic wherever possible, though HTML may be used if the translator can't find a suitable TML equivalent..

The default rendering that TWiki uses to generate HTML for browsers is 'lossy' - information in the TWiki syntax is lost in the HTML output, and a round-trip (recovering the original TWiki syntax from the HTML) is impossible. To solve this problem the plugin instead uses its own translation of TWiki syntax to pure XHTML. The generated XHTML is annotated with CSS classes that support the accurate recovery of the original TWiki syntax.

(before you ask the obvious question, yes, the translator could be used to replace the TWiki rendering pipeline for generating HTML pages. In fact, the translator is taken almost directly from the implementation of the rendering pipeline for the TWiki 'Dakar' release)

Translation of the HTML back to TWiki syntax uses the CPAN:HTML::Parser. This parser is used in preference to a more modern XML parser, because the HTML may not generate fully compliant XHTML. A strict parser would risk losing content. CPAN:HTML::Parser is better at handling malformed syntax.

There is also the advantage that the translator can be used to import HTML from other sources - for example, existing web pages. Due to the simple nature of TWiki syntax and the complexity of HTML, this translation is lossy - i.e there will be HTML features that can be entered by editors that will be lost in this translation step. This is especially noticeable with HTML tables.

Using the translators from Perl scripts

Both translators can be used directly from Perl scripts, for example to build your own stand-alone translators.

An example stand-alone convertor script for HTML to TWiki is included in the installation. It can be found in the top-level tools directory and is called html2tml.pl.

Plugin Installation Instructions

  • Download the ZIP file from the Plugin web (see below)
  • Unzip WysiwygPlugin.zip in your twiki installation directory. Content:
    File: Description:
    lib/TWiki/Plugins/WysiwygPlugin/HTML2TML/WC.pm Perl module
    lib/TWiki/Plugins/WysiwygPlugin/HTML2TML/Leaf.pm Perl module
    lib/TWiki/Plugins/WysiwygPlugin/HTML2TML/Node.pm Perl module
    lib/TWiki/Plugins/WysiwygPlugin/HTML2TML.pm Perl module
    lib/TWiki/Plugins/WysiwygPlugin.pm Perl module
    lib/TWiki/Plugins/WysiwygPlugin/TML2HTML.pm Perl module
    data/TWiki/WysiwygPlugin.txt Documentation and settings
    data/TWiki/WysiwygPluginTopicLister.txt Special AJAX topic
    pub/TWiki/WysiwygPlugin/kuputwiki.css Kupu customisation
    pub/TWiki/WysiwygPlugin/twikitools.js Kupu customisation
    pub/TWiki/WysiwygPlugin/kupuinit.js Kupu customisation
    pub/TWiki/WysiwygPlugin/kupustart.js Kupu customisation
    pub/TWiki/WysiwygPlugin/bold.png Button image
    pub/TWiki/WysiwygPlugin/cancel.png Button image
    pub/TWiki/WysiwygPlugin/code.png Button image
    pub/TWiki/WysiwygPlugin/definition-list.png Button image
    pub/TWiki/WysiwygPlugin/exthyperlink.png Button image
    pub/TWiki/WysiwygPlugin/help.png Button image
    pub/TWiki/WysiwygPlugin/indent.png Button image
    pub/TWiki/WysiwygPlugin/inthyperlink.png Button image
    pub/TWiki/WysiwygPlugin/italic.png Button image
    pub/TWiki/WysiwygPlugin/new-attachment.png Button image
    pub/TWiki/WysiwygPlugin/new-image.png Button image
    pub/TWiki/WysiwygPlugin/nop.png Button image
    pub/TWiki/WysiwygPlugin/ordered-list.png Button image
    pub/TWiki/WysiwygPlugin/outdent.png Button image
    pub/TWiki/WysiwygPlugin/redo.png Button image
    pub/TWiki/WysiwygPlugin/remove.png Button image
    pub/TWiki/WysiwygPlugin/save.png Button image
    pub/TWiki/WysiwygPlugin/separator.png Button image
    pub/TWiki/WysiwygPlugin/smiley.png Button image
    pub/TWiki/WysiwygPlugin/strings.png Button image
    pub/TWiki/WysiwygPlugin/table.png Button image
    pub/TWiki/WysiwygPlugin/text-color.png Button image
    pub/TWiki/WysiwygPlugin/undo.png Button image
    pub/TWiki/WysiwygPlugin/unordered-list.png Button image
    pub/TWiki/WysiwygPlugin/vars.png Button image
    pub/TWiki/WysiwygPlugin/verbatim.png Button image
    pub/TWiki/WysiwygPlugin/verbatim-watermark.png Watermark
    pub/TWiki/WysiwygPlugin/screenshot.jpg Screen shot
    pub/TWiki/WysiwygPlugin/view-source.png Button image
    templates/edit.kupu.tmpl Template for an edit using kupu
    templates/view.kupuxml.tmpl Template for AJAX data
    templates/attachtables.kupu.tmpl Attachment table rendering for editor
    templates/view.kupu.tmpl Template for a kupu skin view, used by the editor
    tools/html2tml.pl Stand-alone convertor script
    pub/TWiki/WysiwygPlugin/_kupu/Extensions/Install.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/Makefile Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/__init__.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/README.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/kupu/body.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/kupu/exit.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/kupu/include.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/kupu/kupudrawerstyles.css Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/kupu/kupumacros.html Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/kupu/kupustyles.css Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/kupu/lenya.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/kupu/lenya.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/kupu/toolbar.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/kupu/toolboxes.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/kupu/wire.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/kupu/xmlconfig.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/content2edit.xsl Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/drawers/imagedrawer.xsl Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/drawers/imagelibraries.xml.jx Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/drawers/kupudrawerstyles.css Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/drawers/libraries.xml.jx Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/drawers/linkdrawer.xsl Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/drawers/linklibraries.xml.jx Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/drawers/publication_image_library.xml.jx Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/drawers/sitetree_link_library.xml.jx Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/i18n.xsl Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/images/emblem-generic.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/images/exit.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/images/page-image.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/images/pub-image.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/images/right_arrow.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/images/sitetree-link.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/kupumacros.xsl Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/kupusave.xsl Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/page2kupu.xsl Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/pageassets2kupulibrary.xsl Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/apache-lenya/lenya/sitetree2kupulibrary.xsl Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/cnf/head.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/cnf/include.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/cnf/toolboxes.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/cnf/wire.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/cnf/xmlconfig.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/fulldoc.html Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupu-pox.cgi Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupu.cgi Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupu.html Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupu.pox Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupu.pox.jspx Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupubasetools.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupubeforeunload.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupublank.html Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupucleanupexpressions.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupucnf.html Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupucnftable.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupucontentfilters.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupucontentstyles.css Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupucontextmenu.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/allimages.xml Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/drawer.xsl Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/drawer.xsl.metadata Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/imagelibrary.xml Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/kupubuttons.xml Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/linklibrary.xml Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos.xml Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/bitflux_logo.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/bitflux_logo_preview.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/bubnbros.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/bubnbros_preview.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/codespeak_logo.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/codespeak_logo_preview.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/diver_logo.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/diver_logo_preview.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/eth_logo.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/eth_logo_preview.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/infrae_logo.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/infrae_logo_preview.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/kupu_logo.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/kupu_logo_preview.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/lenya_logo.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/lenya_logo_preview.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/opensource.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/opensource_preview.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/oscom4_banner.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/oscom4_banner_preview.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/oscom_logo.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/oscom_logo_preview.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/plone_logo.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/plone_logo_preview.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/pypy_logo.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/pypy_logo_preview.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/silva_logo.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/silva_logo_preview.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/twiki_logo.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/twiki_logo.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/zea_logo.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/zea_logo_preview.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/zope_logo.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawers/logos/zope_logo_preview.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupudrawerstyles.css Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupueditor.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuform.html Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuhelpers.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/background-color.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/bold.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/bold.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/buttons.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/caret.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/closed.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/copy.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/create-new.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/cut.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/definitionlist.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/document.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/exit.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/exthyperlink.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/folder.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/fonts.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/format.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/hr.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/image.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/indent.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/indent.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/inthyperlink.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/italic.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/italic.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/justify-center.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/justify-full.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/justify-left.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/justify-right.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/kupu_icon.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/kupulibrary.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/kupusearch_icon.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/larger-text.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/link.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/opened.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/ordered-list.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/outdent.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/paste.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/redo-disabled.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/redo.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/remove.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/save.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/size.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/smaller-text.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/space.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/strikethrough.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/subscript.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/superscript.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/table.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/text-check.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/text-color.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/toolbarbg_blue.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/toolbarbg_green.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/toolbarbg_purple.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/toolbarbg_wood.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/underline.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/underline.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/undo-disabled.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/undo.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/unlink.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/unordered-list.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/view-source.png Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/zoom-in.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuimages/zoom-out.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuinit.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuinit_experimental.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuinit_form.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuinit_genericelements.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuinit_multi.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuinspector.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuloggers.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupumacros.html Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupumulti.html Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupumultieditor.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupunoi18n.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupupopups/image.html Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupupopups/link.html Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupusaveonpart.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupusourceedit.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupuspellchecker.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupustart.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupustart_form.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupustart_multi.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kupustyles.css Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/kuputoolcollapser.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/sarissa.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/sarissa_ieemu_xpath.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/common/spellcheck.cgi Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/config.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/configure.zcml Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/default/body.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/default/colorchooser.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/default/contextmenu.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/default/drawers.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/default/form.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/default/head.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/default/html.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/default/include.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/default/save.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/default/saveonpart.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/default/sourceedit.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/default/spellchecker.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/default/toolbar.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/default/toolboxes.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/default/wire.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/default/xmlconfig.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/dist-apache-lenya.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/dist-cnf.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/dist-form.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/dist-multi.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/dist-plone.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/dist-silva.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/dist-zope2.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/dist.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/BEFOREUNLOAD.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/CHANGES.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/CONTRIBUTING.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/CREDITS.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/CUSTOMIZING.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/EXTENDING.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/FAQ.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/IMAGEUPLOADER.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/INSTALL.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/JSAPI.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/LIBRARIES.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/LICENSE.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/OLDBROWSERS.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/PLONE2.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/README.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/STYLEGUIDE.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/TEMPLATE-SYSTEM.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/TODO.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/ZOPE2.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/default.css Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/docutils.conf Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/doc/file-template Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/form/body.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/form/head.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/form/include.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/form/save.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu-cs.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu-da.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu-de.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu-el.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu-eo.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu-fi.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu-fr.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu-he.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu-ja.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu-nl.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu-pt-br.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu-pt.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu-sr-Latn.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu-sr.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu-zh-cn.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu-zh.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupu.pot Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupuconfig-da.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupuconfig-fr.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupuconfig-ja.po Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/i18n/kupuconfig.pot Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/include.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/kupu-i18nextract-sa-diff.patch Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/kupu_icon.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/make-jspx.xsl Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/make.bat Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/make.xsl Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/multi/body.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/multi/head.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/multi/include.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/multi/save.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/multi/toolboxes.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/ReftextField.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/TODO.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/__init__.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/beforeunload.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/body.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/drawers.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/head.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/html2captioned.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/include.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/interfaces.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu2html.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_config.pt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/contentUsesKupu.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/convertContentForKupu.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/emptypage.pt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupuGetResourceTypes.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupuInfoForBrains.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupuMyItems.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupuRecentItems.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupuSearch.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupuUploadImage.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupuUploadImage.py.metadata Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupu_wysiwyg_support.html Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupublank.html.html Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupucollection.xml.pt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupucollection.xml.pt.metadata Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupulibraries.xml.pt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupumyitems.xml.pt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupuplone.css.dtml Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupuploneeditor.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupuploneinit.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupuploneui.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupurecentitems.xml.pt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupusaveonpart.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/kupusearch.xml.pt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/anchor.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/bgcolor.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/bold.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/center.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/definitionlist.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/delete_icon.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/hr.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/hyperlink.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/indent.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/italic.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/left_just.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/list.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/numbered_list.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/outdent.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/redo.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/right_just.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/space.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/strikethrough.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/subscript.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/superscript.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/table.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/textcolor.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/tools.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/underline.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/undo.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/unformat.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/plonekupuimages/view-source.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/resolveuid.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/sample-kupu-customisation-policy.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/kupu_plone_layer/wysiwyg_support.pt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/libraries.pt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/librarytool.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/permissions.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/plonelibrarytool.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/resource_types.pt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/scanner.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/sourceedit.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/__init__.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/framework.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/input/baduid.in Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/input/linked.in Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/input/minimal.in Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/input/notcaptioned.in Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/input/notquoted.in Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/input/simple.in Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/output/baduid.out Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/output/linked.out Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/output/minimal.out Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/output/notcaptioned.out Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/output/notquoted.out Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/output/simple.out Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/runalltests.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/runme.cmd Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/test_browserSupportsKupu.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/test_html2captioned.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/test_librarymanager.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/tests/test_resourcetypemapper.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/toolbar.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/wire.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/wysiwyg_support.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/xmlconfig.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/plone/zmi_docs.pt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/python/__init__.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/python/nationalizer.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/python/spellcheck.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/refresh.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/roundup/kupuinit.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/roundup/kupustyles.css Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/body.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/closed_arrow.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/contextmenu.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/drawers.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/head.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/imagedrawer.xsl.pt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/include.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/kupudrawerstyles.css Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/kupumacros.html Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/kupusilvainit.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/kupusilvatools.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/librarydrawer.xsl Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/opened_arrow.gif Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/saveonpart.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/toolbar.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/toolboxes.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/wire.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/silva/xmlconfig.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/tests/run_tests.html Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/tests/test_beforeunload.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/tests/test_kupubasetools.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/tests/test_kupueditor.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/tests/test_kupuhelpers.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/tests/test_kupuinit.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/tests/test_plone.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/tests/test_xhtml.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/tools/compress.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/tools/convert_to_utf-8.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/tools/makepox.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/version.txt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/widgeteer/Makefile Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/widgeteer/body.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/widgeteer/browser.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/widgeteer/dist.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/widgeteer/empty.html Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/widgeteer/head.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/widgeteer/include.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/widgeteer/kupuinit.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/widgeteer/kupustart.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/widgeteer/kupustyles.css Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/widgeteer/make.bat Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/widgeteer/wire.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/widgeteer/xmlconfig.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope2/__init__.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope2/addKupuEditor.pt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope2/body.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope2/contextmenu.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope2/drawers.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope2/example.pt Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope2/head.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope2/html.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope2/include.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope2/saveonpart.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope2/sourceedit.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope2/wire.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope2/xmlconfig.kupu Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope3/__init__.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope3/browser/__init__.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope3/browser/configure.zcml Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope3/configure.zcml Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope3/field.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/zope3/interfaces.py Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/tests/test_kupubasetools.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/tests/test_kupueditor.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/tests/test_kupuhelpers.js Kupu 1.3.2
    pub/TWiki/WysiwygPlugin/_kupu/tests/test_kupuinit.js Kupu 1.3.2

  • Run WysiwygPlugin_installer to automatically check and install other modules that this module depends on. You can also do this step manually. Dependencies:
    NameVersionDescription
    HTML::ParserRequired. Available from CPAN.
    HTML::EntitiesRequired. Available from CPAN.
  • (Dakar) Visit configure in your TWiki installation, and enable the plugin in the {Plugins} section.
  • To enable the editor in one of your skins, add the following link to the skin alongside or in place of the existing 'edit' link:
    <a href="%SCRIPTURLPATH%/edit%SCRIPTSUFFIX%/%WEB%/%TOPIC%?skin=kupu">Kupu</a>
    As you can see this is just a standard edit link with the 'kupu' skin in place of the usual edit skin. Here it is for this topic: Kupu. Try clicking on it, but do not save!

If you want to set up Kupu as your default editor, then you can set the EDIT_SKIN TWiki variable wherever you want.

  • Set EDIT_SKIN = kupu
Set it in a user topic to set it for one user. Set it in WebPreferences to set it for a single web. Or set it in your global TWiki preferences to set it for your whole site!

Plugin Configuration Settings

  • Set SHORTDESCRIPTION = Translator framework and WYSIWYG editor for TWiki topics
  • The name of the skin used to invoke a Wysiwyg editor.
    • Set WYSIWYGSKIN = kupu
  • Web/Topic name of a help page. Change this to point to your local version of the help page, which is brought up when the .
    • Set HELPPAGE = TWiki/WysiwygPlugin

Other Settings

The editor template includes a number of files that can be used for other settings. These files are not defined in the distribution, so that you can create your own local content.

TWiki.WysiwygPluginIcons

You can define a list of icons that will be available in the Kupu editor when the smiley.png toolbar button is pressed. This topic has to contain a list of <IMG> tags. If present, the 'alt' text will be used in place of the <IMG> tag when translating from HTML to TML. Example:
   <img src="%PUBURL%/TWiki/TWikiDocGraphics/tip.gif" />
   <img src="%PUBURL%/TWiki/TWikiDocGraphics/warning.gif" />
   <img src="%PUBURL%/TWiki/TWikiDocGraphics/pencil.gif" />
   <img src="%PUBURL%/TWiki/TWikiDocGraphics/choice-yes.gif" />
   <img src="%PUBURL%/TWiki/TWikiDocGraphics/updated.gif" />
   <img src="%PUBURL%/TWiki/TWikiDocGraphics/help.gif" />
   <img src="%PUBURL%/TWiki/TWikiDocGraphics/new.gif" />
   <img src="%PUBURL%/TWiki/TWikiDocGraphics/starred.gif" />
   <img src="%PUBURL%/TWiki/TWikiDocGraphics/arrowright.gif" />

TWiki.WysiwygPluginStrings

You can also define a list of strings that will be available for insertion in topics using the strings.png toolbar button. This topic has to contain a list of HTML 'option' tags. Example:
   <option value='-- <nop>%WIKIUSERNAME% - %DATE%'>Signature</option>
   <option value="%<nop>WIKINAME%">Wiki name (variable)</option>
   <option value='%<nop>SEARCH{"search for"}%'>Inline search (variable)</option>
   <option value='%<nop>INCLUDE{"topic or url"}%'>Include (variable)</option>
   <option value="%<nop>TOC%"> Table of Contents (variable)</option>
   <option value="%<nop>TOPIC%">Topic (variable)</option>
   <option value="%<nop>WEB%">Web (variable)</option>
   <option value="%<nop>DATE%"> Date (variable)</option>
The bit between the > < value defines text in the drop-down box in the editor, and the value defines the actual string inserted in the topic.

TWiki.WysiwygPluginLocalHelp

If it exists, the contents of this topic will be included and shown on the edit screen below the status bar. It is intended to be used for site-specific quick help information.

Editor control

The global TWiki Variable WYSIWYG_EXCLUDE can be set to make the plugin sensitive to what is in a topic before allowing it to be edited. You can set it up to refuse to edit if

  • some or all of HTML tags (e.g. <br /> or <div>), or
  • simple variables (e.g. %VAR%) or
  • calls (e.g. %VARIABLE{...}%)
  • PRE blocks (<pre>)
  • HTML comments (<!-- ... -->)

are used in the topic. If the plugin detects an excluded construct in the topic, it will redirect to the default editor. Comma-separated list of one or more of html, variables, calls, pre or comments e.g.

  • Set WYSIWYG_EXCLUDE = variables,calls (inactive; you need to remove monospacing from this setting to enable it)

If you are using this plugin with TWiki-4.0.0 or later with pattern skin, the %COMPOSER% global TWiki variable is used to control the skin used for the WYSIWYG editor link. You can define this variable to the empty string to disable WYSIWYG editing on a site, per-web, per-user or per-topic basis.

Known Issues

Most of the known problems with the plugin are actually problems with the Kupu editor or the browser rather than the plugin.

Incompatible with "non-standard" syntax

WysiwygPlugin is Incompatible with plugins that expand non-standard syntax e.g. TWiki:Plugins.MathModePlugin (WysiwygPlugin)

Plugins that extend the syntax using TWiki variables, such as %MYVARIABLE%, should work fine.

Can't undo all functions (Kupu + browser)

Due to limitations in the browser support for editing, not all functions can be undone. Also, the undo buffer can be cleared unexpectedly during editing, especially when using Internet Explorer.

Overlapping styles (WysiwygPlugin)

Because TWiki uses a "best guess" approach to some formatting, it allows overlapping of tags in a way forbidden by HTML, it is impossible to guarantee 100% that formating in the original TWiki document will still be there when the same document is loaded and then saved through the WysiwygPlugin. The most obvious case of this is to do with styles. For example, the sentence
*bold _bold-italic* italic_
is legal in TML, but in HTML is represented by
<strong>bold <em>bold-italic</em></strong> <em>italic</em>
which gets translated back to TML as
*bold _bold-italic_* _italic_
which is correct by construction, but does not render correctly in TWiki. This problem is unfortunately unavoidable due to the way TWiki syntax works.

Support for PRE

Because of limitations in the browsers, the editor does not support PRE blocks. All PRE blocks will be converted to TWiki verbatim blocks on save. This can cause some confusion, especially when editor formatting controls (such as "bold") have been used to format text in a PRE block. Users are advised to use only plain text in PRE (verbatim) blocks.

Plugin Info

This plugin is heavily based on the TWiki::Plugins.KupuEditorAddOn, and the authors of that add-on are therefore also credited as authors of this plugin.

Plugin Authors: TWiki:Main.CrawfordCurrie http://www.c-dot.co.uk (from original work by TWiki:Main.RomainRaugi, TWiki:Main.DamienMandrioli, TWiki:Main.FredericLuddeni, and TWiki:Main.ColasNahaboo)
Copyright © ILOG 2005 http://www.ilog.fr
Plugin Version: 8713
Change History:
Dependencies:
NameVersionDescription
HTML::ParserRequired. Available from CPAN.
HTML::EntitiesRequired. Available from CPAN.
Perl Version: 5.0
Plugin Home: TWiki:Plugins/WysiwygPlugin
Feedback: TWiki:Plugins/WysiwygPluginDev

Related Topics: TWikiPreferences, TWikiPlugins

-- TWiki:Main/CrawfordCurrie - 02:09:07 08 February 2006

toggleopenShow attachmentstogglecloseHide attachments
Topic attachments
I Attachment Action Size Date Who Comment
pngpng table.png manage 0.9 K 13 Mar 2006 - 01:06 UnknownUser
jsjs kupustart.js manage 2.9 K 13 Mar 2006 - 01:06 UnknownUser
pngpng bold.png manage 0.3 K 13 Mar 2006 - 01:06 UnknownUser
pngpng undo.png manage 0.9 K 13 Mar 2006 - 01:06 UnknownUser
pngpng save.png manage 0.4 K 13 Mar 2006 - 01:06 UnknownUser
pngpng definition-list.png manage 0.2 K 13 Mar 2006 - 01:06 UnknownUser
pngpng help.png manage 0.6 K 13 Mar 2006 - 01:06 UnknownUser
pngpng view-source.png manage 0.5 K 13 Mar 2006 - 01:06 UnknownUser
pngpng italic.png manage 0.2 K 13 Mar 2006 - 01:06 UnknownUser
pngpng text-color.png manage 0.4 K 13 Mar 2006 - 01:06 UnknownUser
pngpng new-image.png manage 0.5 K 13 Mar 2006 - 01:06 UnknownUser
pngpng strings.png manage 0.9 K 13 Mar 2006 - 01:06 UnknownUser
pngpng new-attachment.png manage 0.3 K 13 Mar 2006 - 01:06 UnknownUser
pngpng exthyperlink.png manage 0.8 K 13 Mar 2006 - 01:06 UnknownUser
pngpng verbatim.png manage 0.4 K 13 Mar 2006 - 01:06 UnknownUser
pngpng inthyperlink.png manage 0.5 K 13 Mar 2006 - 01:06 UnknownUser
pngpng indent.png manage 0.9 K 13 Mar 2006 - 01:06 UnknownUser
pngpng vars.png manage 1.0 K 13 Mar 2006 - 01:06 UnknownUser
pngpng cancel.png manage 0.6 K 13 Mar 2006 - 01:06 UnknownUser
jpgjpg screenshot.jpg manage 68.7 K 13 Mar 2006 - 01:06 UnknownUser
pngpng separator.png manage 0.2 K 13 Mar 2006 - 01:06 UnknownUser
pngpng remove.png manage 1.1 K 13 Mar 2006 - 01:06 UnknownUser
jsjs twikitools.js manage 27.4 K 13 Mar 2006 - 01:06 UnknownUser
pngpng verbatim-watermark.png manage 2.8 K 13 Mar 2006 - 01:06 UnknownUser
pngpng nop.png manage 0.5 K 13 Mar 2006 - 01:06 UnknownUser
pngpng ordered-list.png manage 0.9 K 13 Mar 2006 - 01:06 UnknownUser
elsecss kuputwiki.css manage 5.1 K 13 Mar 2006 - 01:06 UnknownUser
pngpng smiley.png manage 0.2 K 13 Mar 2006 - 01:06 UnknownUser
pngpng unordered-list.png manage 0.9 K 13 Mar 2006 - 01:06 UnknownUser
pngpng code.png manage 0.3 K 13 Mar 2006 - 01:06 UnknownUser
jsjs kupuinit.js manage 11.0 K 13 Mar 2006 - 01:06 UnknownUser
pngpng redo.png manage 0.9 K 13 Mar 2006 - 01:06 UnknownUser
pngpng outdent.png manage 0.9 K 13 Mar 2006 - 01:06 UnknownUser

This site is powered by the TWiki collaboration platformCopyright © by the contributing authors. All material on this collaboration platform is the property of the contributing authors.
Ideas, requests, problems regarding wiki.fini? Send feedback
Note: Please contribute updates to this topic on TWiki.org at TWiki:TWiki.WysiwygPlugin
